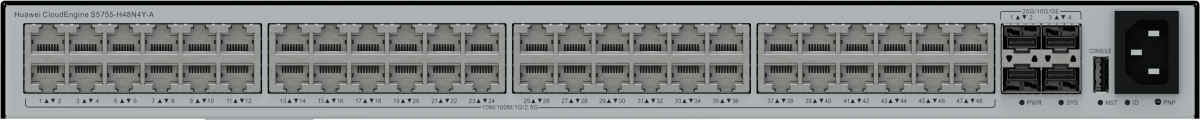

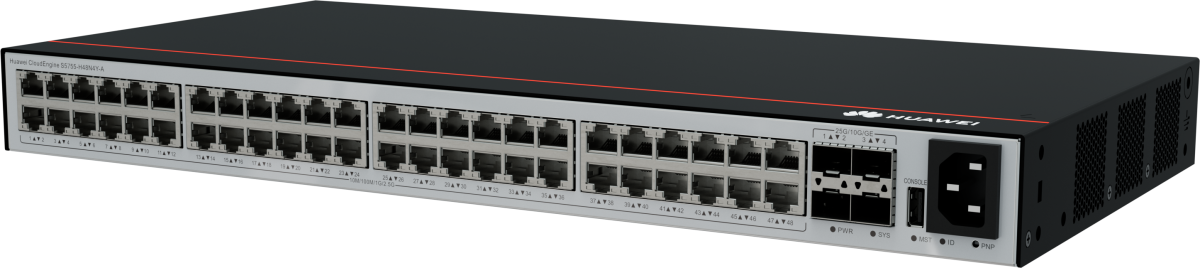

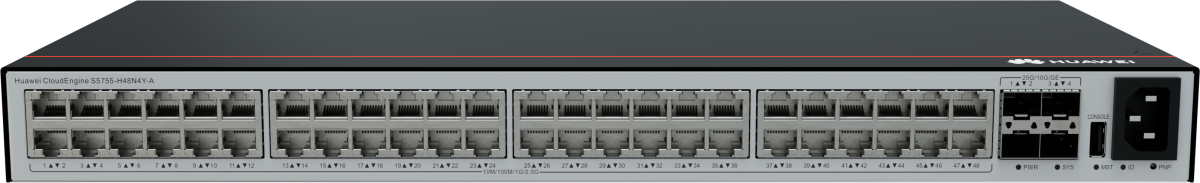

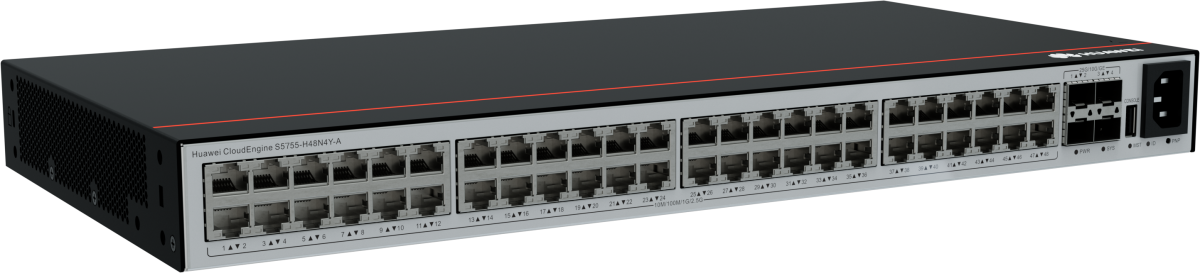

Коммутатор Huawei S5755-H48N4Y-A - 48x10/100/1000/2.5GBASE-T, 4x25GE SFP28 ports, built-in AC

Product Model

CloudEngine S5755-H48N4Y-A

Forwarding Performance

327 Mpps

Switching Capacity

440 Gbps  /2.32 Tbps

Fixed Ports

• 48 × 100M/1/2.5G Base-T Ethernet ports
• 4 x 1/10/25GE SFP28

Power Supply Type

Built-in power supply

MAC Features

IEEE 802.1d compliance
Automatic MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses

iPCA

Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratio
Collecting real-time statistics on the number of lost packets and packet loss ratio at network and device levels

VXLAN

VXLAN Layer 2 and Layer 3 gateways
Centralized and distributed gateways
BGP-EVPN
Configured through the NETCONF protocol

Interoperability

VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)

Part Number

02355NEE

Chassis material

Metal

Height [mm]

43.6 mm

Depth [mm]

220.0 mm

Wide [mm]

442.0 mm

Chassis height [U]

1

Weight with packaging [kg(lb)]

4.71 kg (10.38 lb)

Weight without packaging [kg(lb)]

4.09 kg (9.02 lb)

Maximum power consumption [W]

100% traffic under the ATIS standard:

105 W

Typical power consumption [W]

30% traffic under the ATIS standard:

101 W

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Maximum heat dissipation [BTU/hour]

100% traffic under the ATIS standard:

358.27

Typical heat dissipation [BTU/hour]

30% traffic under the ATIS standard:

313.91

Power supply mode

AC built-in

Input voltage range [V]

AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz

Rated input voltage [V]

AC input: 100–240 V AC; 50/60 Hz

Maximum input current [A]

3 A

Memory

4 GB

Flash memory

2 GB

Redundant power supply

Not supported

Types of fans

Built-in

Noise at normal temperature (acoustic power) [dB(A)]

47.2

Noise at normal temperature (acoustic pressure) [dB(A)]

35.2

Airflow direction

Air intake from left and air exhaust from right

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Short-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating temperature [°C(°F)]

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:

- The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year.

- The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.

- The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.

If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.

Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

MTBF [year]

45.5

MTTR [hour]

2

Availability

> 0.99999

Maximum number of physical ports on the entire device

52

Maximum number of 100GE ports

0

Maximum number of 40GE ports

0

Maximum number of 25GE ports

4

Maximum number of 10GE ports

4

Maximum number of GE ports

52

Maximum number of FE ports

48

25G optical interface

4

USB

Not supported

Console port

USB

Eth Management port

RJ45

Power supply surge protection

Differential mode: ±6 kV; common mode: ±6 kV

RPS input

Not supported
