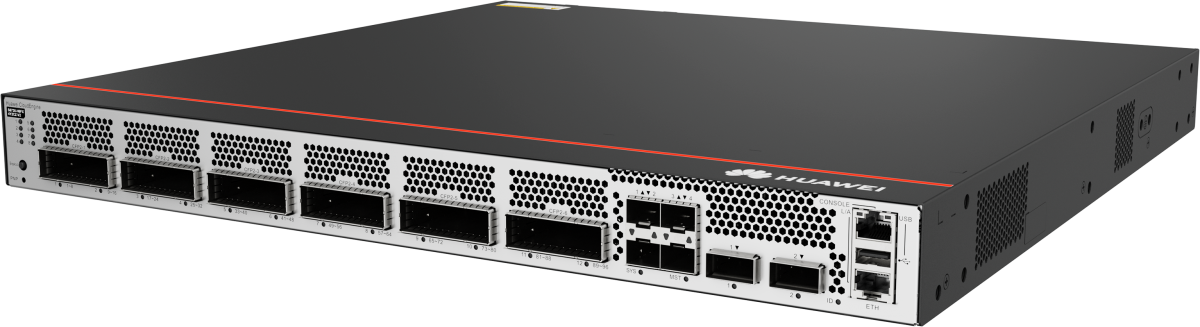

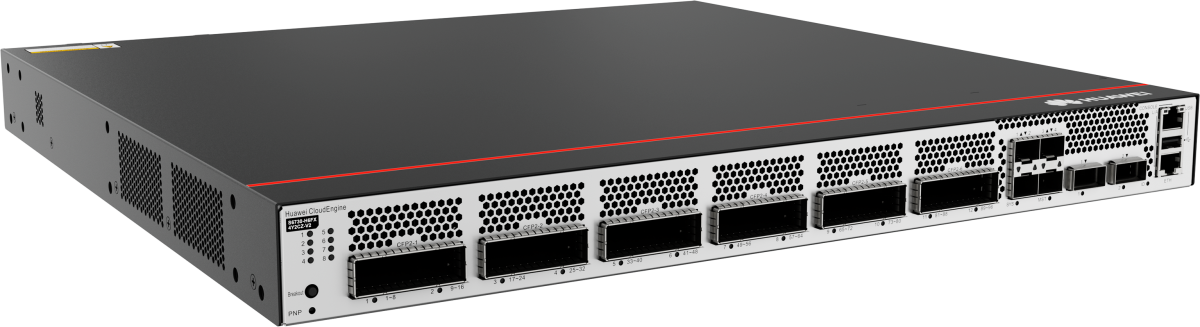

Коммутатор Huawei S6730-H6FX4Y2CZ-V2 - 6xCFP2 PEN ports, 4x25GE SFP28, 2x100GE QSFP28

Part Number

02356CMB

Model

S6730-H6FX4Y2CZ-V2

Switching Capacity

2.52Tbps/4.8Tbps

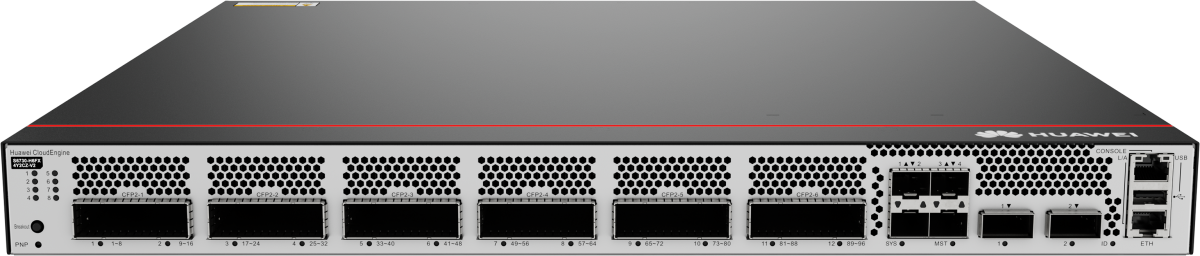

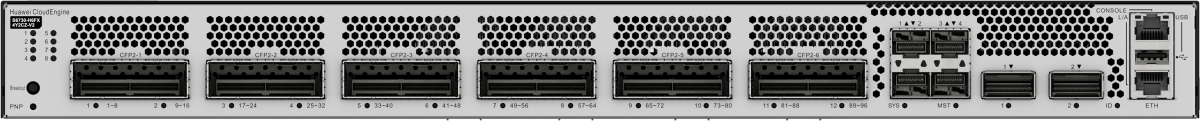

Fixed Ports

• 6 x CFP2 PEN central ports
• 4 x 25GE SFP28
• 2 x 100GE QSFP28 ports

Power Supply Type

1+1 backup

Expansion Slots

8 x 10GE or 4 x 25GE optical ports

MAC Features

• MAC address auto-learning and aging
• Static, dynamic, and blackhole MAC address entries
• Packet filtering based on source MAC addresses
• MAC address learning limiting based on ports and VLANs

VXLAN Features

• Distributed and centralized VXLAN gateways
• BGP EVPN
• VXLAN configuration through NETCONF
• VXLAN route switching

iPCA Quality Awareness

• Direct marking of service packets to obtain real-time statistics about dropped packets and packet loss rate

• Measurement of the dropped packets and packet loss rate on Layer 2/Layer 3 devices and networks

QoS

• Traffic classification based on information from the link layer to the application layer
• Complete queue scheduling and congestion control algorithms
• Accurate multi-level scheduling for data flows
• Hardware-based low-latency QoS queues for multicast packets

Interoperability

VBST (compatible with PVST/PVST+/RPVST), LNP (similar to DTP), VCMP (similar to VTP)

Technical Specifications

Chassis material

Metal

Height [mm]

43.6 mm

Depth [mm]

420.0 mm

Wide [mm]

442.0 mm

Chassis height [U]

1

Weight with packaging [kg(lb)]

9.38 kg (20.68 lb)

Weight without packaging [kg(lb)]

6.66 kg (14.68 lb)

Maximum power consumption [W]

281

Typical power consumption [W]

234

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Maximum heat dissipation [BTU/hour]

958.80

Typical heat dissipation [BTU/hour]

798.43

Power supply mode

Pluggable power supply

Input voltage range [V]

- AC input: 90 V AC to 290 V AC; 45–65 Hz

- High-voltage DC input: 190 V DC to 290 V DC

- DC input: -38.4 V DC to -72 V DC

Rated input voltage [V]

- AC input: 100 V AC to 240 V AC; 50/60 Hz

- High-voltage DC input: 240 V DC

- DC input: –48 V DC to –60 V DC

Maximum input current [A]

The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.

Number of power slots

2

Number of card slots

1

Memory

4 GB

Flash memory

Physical space: 2 GB

Redundant power supply

1+1

Pluggable AC and DC power modules can be used together in the same switch.

Types of fans

Pluggable

Noise at normal temperature (acoustic power) [dB(A)]

53.5

Noise at normal temperature (acoustic pressure) [dB(A)]

50.5

Airflow direction

Air intake from front, air exhaustion from rear  (front-to-rear)

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating temperature [°C(°F)]

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The device cannot start when the temperature is lower than 0°C (32°F).

When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

MTBF [year]

51.81

MTTR [hour]

2

Availability

> 0.99999

Maximum number of physical ports on the entire device

12

Maximum number of 100GE ports

2

Maximum number of 40GE ports

2

Maximum number of 25GE ports

4

Maximum number of 10GE ports

4

Maximum number of GE ports

0

Maximum number of FE ports

0

100G optical interface

2

25G optical interface

4

10GE optical interface

16

USB

Supported

Console port

RJ45

Eth Management port

RJ45

Power supply surge protection

- Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode

- Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

RPS input

Not supported

PoE

Not supported
