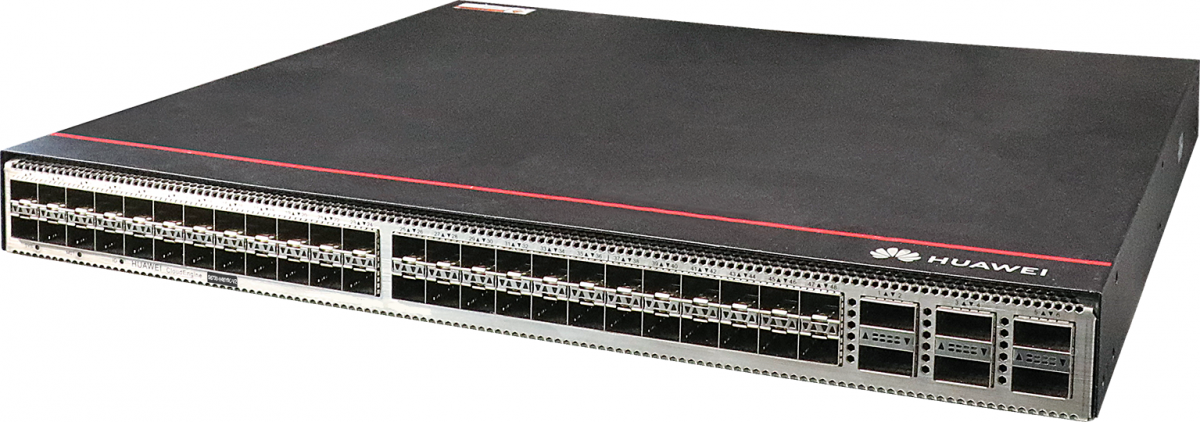

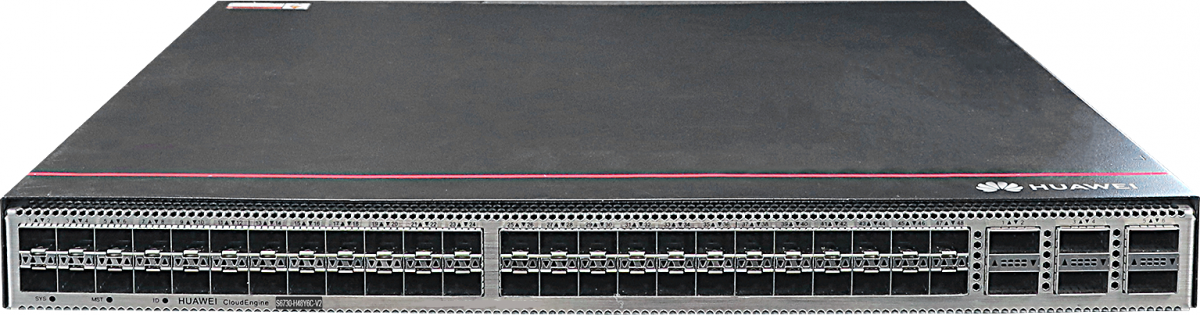

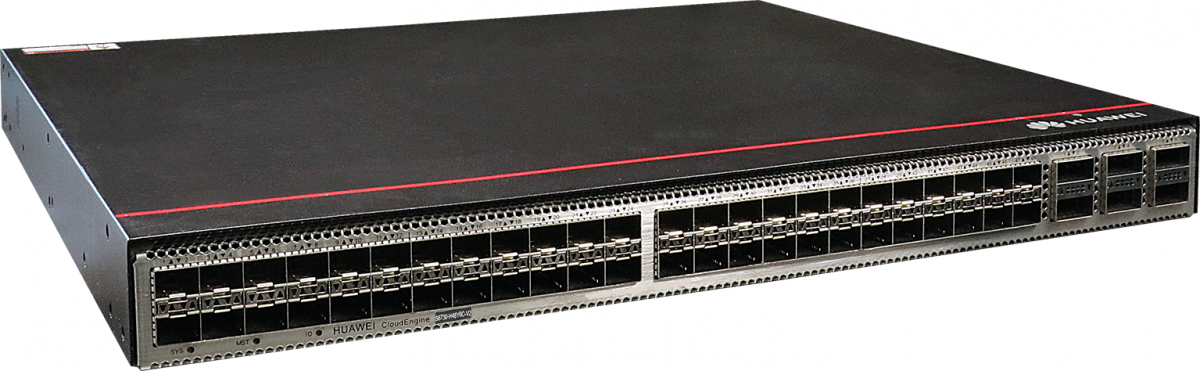

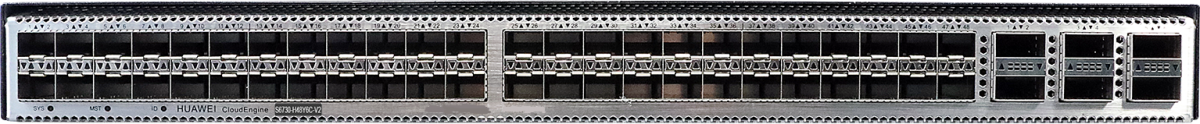

Коммутатор Huawei S6730-H48Y6C-V2 - 48x25GE SFP28, 6x100GE QSFP28

Switching Capacity

3.6Tbps/4.8Tbps

Fixed Ports

• 48 x 25 Gig SFP28
• 6 x 100 Gig QSFP28

iPCA

Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels

VXLAN

VXLAN L2 and L3 gateways

Centralized and distributed gateways

BGP-EVPN

Configured through the NETCONF protocol

QoS

Traffic classifier technologies from the link layer to the application layer

Comprehensive queue scheduling algorithms and congestion control algorithms

Multi-level precise scheduling of data flows

Hardware-based low-latency queues for multicast packets

Interoperability

VBST (compatible with PVST/PVST+/RPVST)

LNP (similar to DTP)

VCMP (similar to VTP)

Part Number

02354NGU

Model

S6730-H48Y6C-V2

Description

S6730-H48Y6C-V2(48*25GE SFP28 ports, 6*100GE QSFP28 ports, without power module)

Chassis material

Metal

Height [mm]

43.6 mm

Depth [mm]

420.0 mm

Wide [mm]

442.0 mm

Chassis height [U]

1

Weight with packaging [kg(lb)]

10.01 kg (22.07 lb)

Weight without packaging [kg(lb)]

7.03 kg (15.50 lb)

Maximum power consumption [W]

384

Typical power consumption [W]

256

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Maximum heat dissipation [BTU/hour]

1310.25

Typical heat dissipation [BTU/hour]

873.50

Power supply mode

Pluggable power supply

Input voltage range [V]

- AC input: 90–290 V AC; 45–65 Hz

- High-voltage DC input: 190 V DC to 290 V DC

- DC input: -38.4 V DC to -72 V DC

Rated input voltage [V]

- AC input: 100 V AC to 240 V AC; 50/60 Hz

- High-voltage DC input: 240 V DC

- DC input: –48 V DC to –60 V DC

Maximum input current [A]

The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.

Number of power slots

2

Number of card slots

0

Memory

4 GB

Flash memory

Physical space: 4 GB

Redundant power supply

1+1

Pluggable AC and DC power modules can be used together in the same switch.

Types of fans

Pluggable

Noise at normal temperature (acoustic power) [dB(A)]

67

Noise at normal temperature (acoustic pressure) [dB(A)]

58

Airflow direction

Air intake from front, air exhaustion from rear  (front-to-rear)

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating temperature [°C(°F)]

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Devices cannot start when the temperature is lower than 0°C (32°F).

When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

MTBF [year]

47.81

MTTR [hour]

2

Availability

> 0.99999

Maximum number of physical ports on the entire device

54

Maximum number of 100GE ports

6

Maximum number of 40GE ports

6

Maximum number of 25GE ports

48

Maximum number of 10GE ports

48

Maximum number of GE ports

48

Maximum number of FE ports

0

100G optical interface

6

25G optical interface

48

USB

Supported

Console port

RJ45

Eth Management port

RJ45

Service port surge protection [kV]

-

Power supply surge protection

- AC power module configured: ±6 kV in differential mode, ±6 kV in common mode

- DC power module configured: ±2 kV in differential mode, ±4 kV in common mode

RPS input

Not supported

PoE

Not supported
