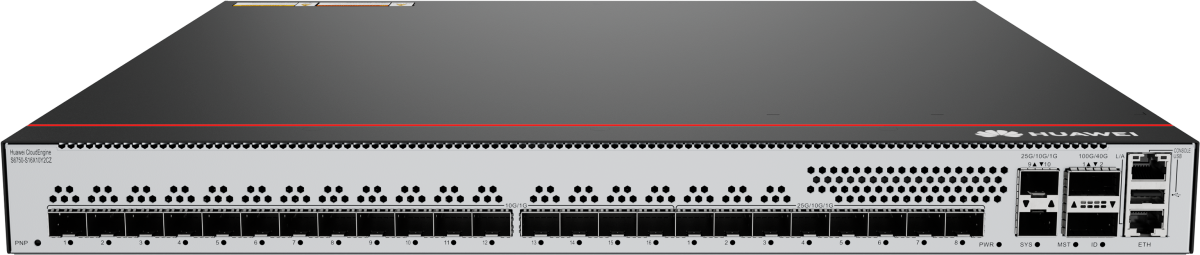

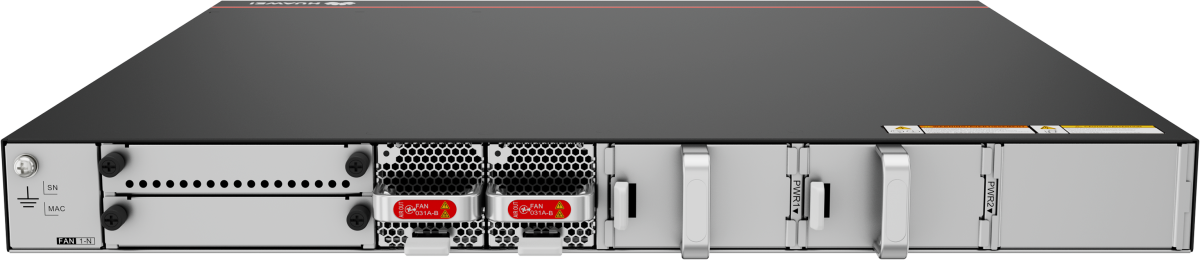

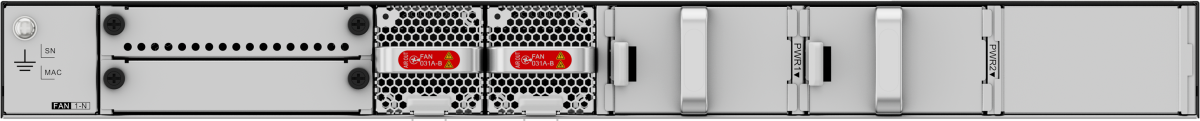

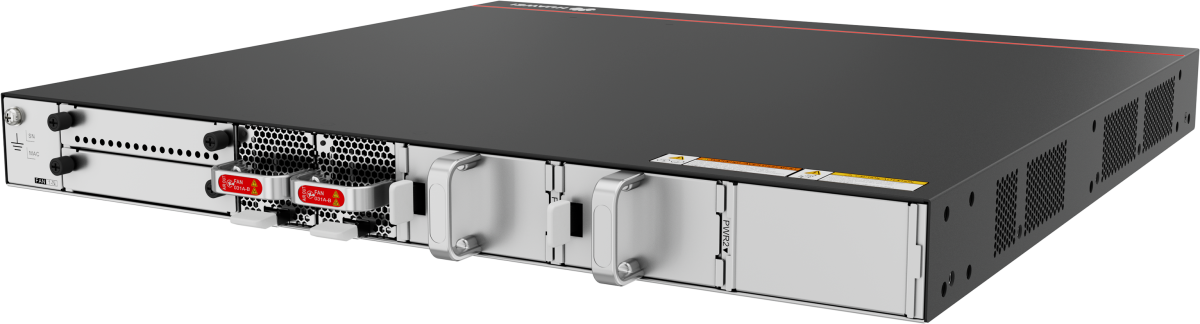

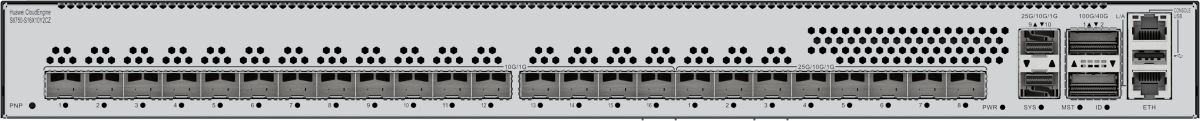

Коммутатор Huawei S6750-S16X10Y2CZ - 16x10GE SFP+, 10x25GE SFP28, 2x100GE QSFP28, expansion card slot

Пропускная способность пересылки пакетов

450 Mpps

Внутренняя пропускная способность

1.42 Тб/с /2.32 Тб/с

Фиксированные порты

• 16 x 10GE SFP+
• 10 x 25GE SFP28
• 2 x 40GE/100GE QSFP28

Слоты расширения

Два слота расширения

Тип блока питания

1+1 backup

MAC характеристики

• MAC address auto-learning and aging
• Static, dynamic, and blackhole MAC address entries
• Packet filtering based on source MAC addresses
• MAC address learning limiting based on ports and VLANs

VXLAN характеристики

• Distributed and centralized VXLAN gateways
• BGP EVPN
• VXLAN configuration through NETCONF
• VXLAN route switching

iPCA Quality Awareness

Direct marking of service packets to obtain real-time statistics about dropped packets and packet loss rate

Measurement of the dropped packets and packet loss rate on Layer 2/Layer 3 devices and networks

QoS

• Traffic classification based on information from the link layer to the application layer
• Complete queue scheduling and congestion control algorithms
• Accurate multi-level scheduling for data flows
• Hardware-based low-latency QoS queues for multicast packets

Interoperability

VBST (compatible with PVST/PVST+/RPVST)

LNP (similar to DTP)

VCMP (similar to VTP)

Part Number

98012444

Модель

S6750-S16X10Y2CZ

Описание

S6750-S16X10Y2CZ (16*10GE SFP+ ports, 10*25GE SFP28 ports, 2*100GE QSFP28 ports, expansion card slot, without power module)

Remarks

When cards are used, power modules with a power of 240 W or higher must be used.

Chassis material

Metal

Высота

43.6 мм

Глубина

420.0 мм

Ширина

442.0 мм

Chassis height [U]

1U

Масса с упаковкой

7.65 кг

Масса без упаковки

5.20 кг

Maximum power consumption [W]

100% traffic under the ATIS standard and dual power modules:

- 130 W (with two 180 W AC power modules)

- 118 W (with two 240 W DC power modules)

Typical power consumption [W]

30% traffic under the ATIS standard and dual power modules:

- 120 W (with two 180 W AC power modules)

- 109 W (with two 240 W DC power modules)

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Maximum heat dissipation [BTU/hour]

100% traffic under the ATIS standard and dual power modules:

- 444 (with two 180 W AC power modules)

- 403 (with two 240 W DC power modules)

Typical heat dissipation [BTU/hour]

30% traffic under the ATIS standard and dual power modules:

- 409 (with two 180 W AC power modules)

- 372 (with two 240 W DC power modules)

Power supply mode

Pluggable power supply

Input voltage range [V]

- AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz

- High-voltage DC input: 190 V DC to 290 V DC

- DC input: -38.4 V DC to -72 V DC

Rated input voltage [V]

- AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz

- High-voltage DC input: 240 V DC

- DC input: –48 V DC to –60 V DC

Maximum input current [A]

The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.

Number of power slots

2

Number of card slots

1

Память

4 Гб

Flash память

2 Гб

Redundant power supply

1+1

Pluggable AC and DC power modules can be used together on the same device.

Note:

Power modules with fans and power modules without fans cannot be installed on the same device.

Types of fans

Pluggable

Noise at normal temperature (acoustic power) [dB(A)]

54.2 dBA

Noise at normal temperature (acoustic pressure) [dB(A)]

41.2 dBA

Airflow direction

Air intake from front and right and air exhaust from rear

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Short-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating temperature [°C(°F)]

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:

- The operating temperature exceeds 45°C (113°F) for no more than 96 consecutive hours in a year.

- The total time in which the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.

- The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.

If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.

The device cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.

When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

MTBF [year]

69.10

MTTR [hour]

2

Availability

> 0.99999

Maximum number of physical ports on the entire device

28

Maximum number of 100GE ports

2

Maximum number of 40GE ports

2

Maximum number of 25GE ports

10

Maximum number of 10GE ports

26

Maximum number of GE ports

26

Maximum number of FE ports

16

100G optical interface

2

25G optical interface

10

10GE optical interface

16

USB порт

Да

Консольный порт

RJ45

Eth Management порт

RJ45

Power supply surge protection

- Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode

- Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
