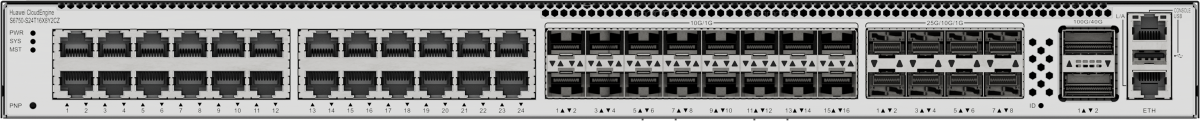

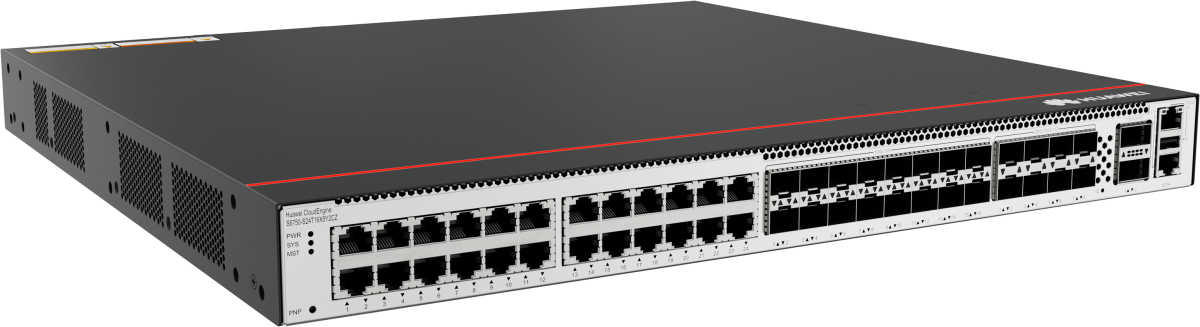

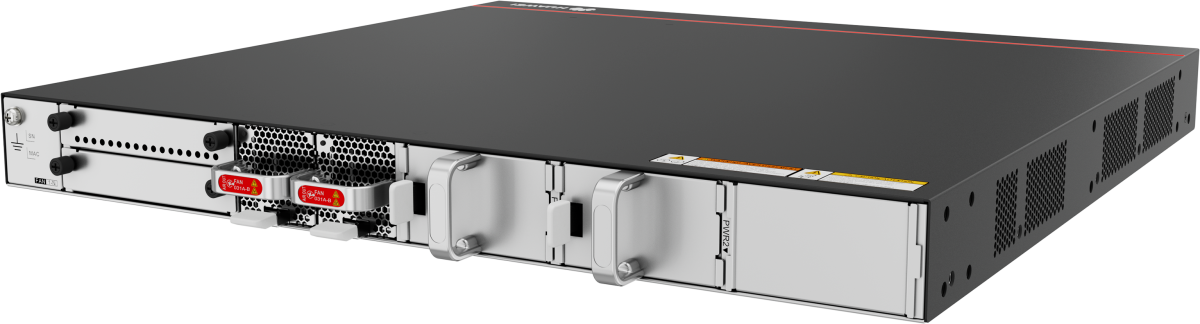

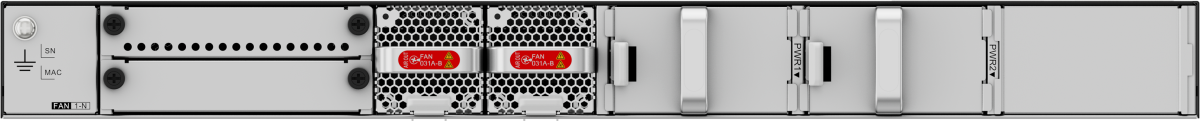

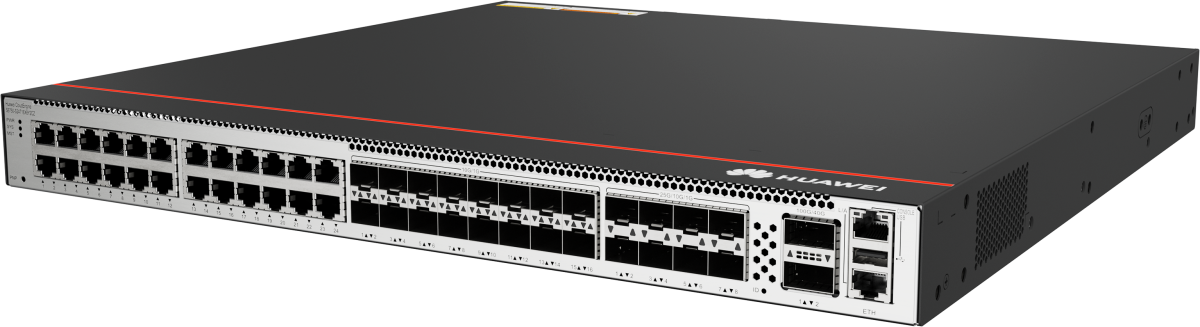

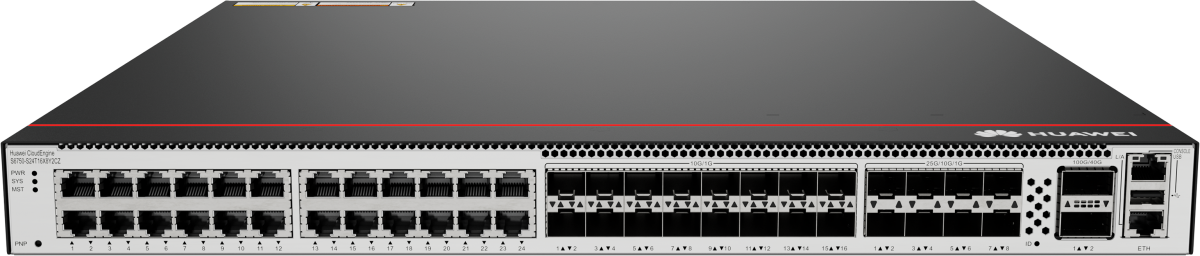

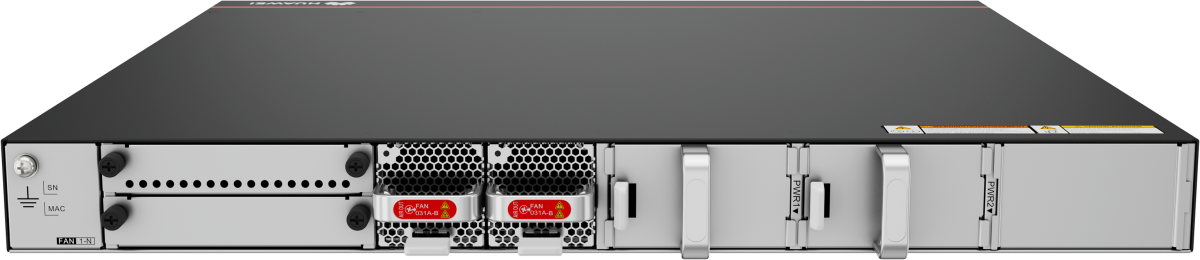

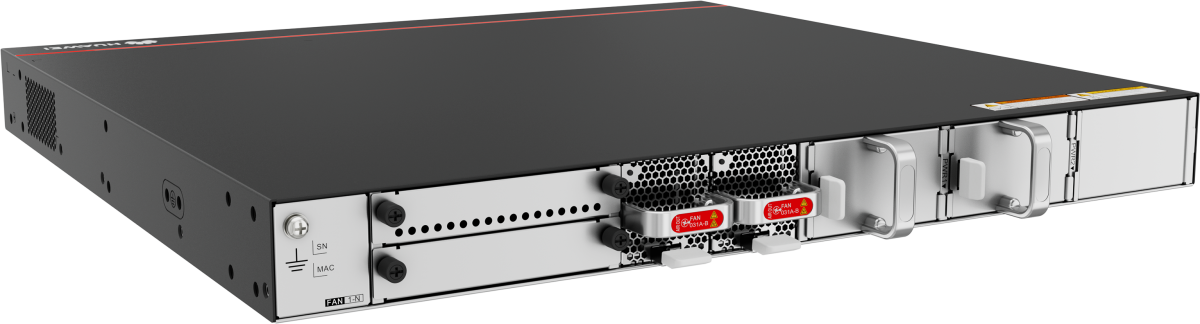

Коммутатор Huawei S6750-S24T16X8Y2CZ - 24xGE, 16x10GE SFP+, 8x25GE SFP28, 2x100GE QSFP28, expansion card slot

Product Model

CloudEngine S6750-S24T16X8Y2CZ

Forwarding Performance

450 Mpps

Switching Capacity

968 Gbps/2.32 Tbps

Fixed Ports

24 × 10M/100M/1000M Base-T Ethernet ports + 16 x 10GE SFP+ ports + 8 x 25GE SFP28 ports + 2 x 40GE/100GE QSFP28 ports

Expansion Slots

Two expansion slots

Power Supply Type

1+1 backup

MAC Features

MAC address auto-learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

MAC address learning limiting based on ports and VLANs

VXLAN Features

Distributed and centralized VXLAN gateways

BGP EVPN

VXLAN configuration through NETCONF

VXLAN route switching

iPCA Quality Awareness

Direct marking of service packets to obtain real-time statistics about dropped packets and packet loss rate

Measurement of the dropped packets and packet loss rate on Layer 2/Layer 3 devices and networks

QoS

Traffic classification based on information from the link layer to the application layer

Complete queue scheduling and congestion control algorithms

Accurate multi-level scheduling for data flows

Hardware-based low-latency QoS queues for multicast packets

Interoperability

VBST (compatible with PVST/PVST+/RPVST)

LNP (similar to DTP)

VCMP (similar to VTP)

Basic Information

Part Number

98012446

Model

S6750-S24T16X8Y2CZ

Description

S6750-S24T16X8Y2CZ (24*10/100/1000BASE-T ports, 16*10GE SFP+ ports, 8*25GE SFP28 ports, 2*100GE QSFP28 ports, expansion card slot, without power module)

Technical Specifications

Remarks

When cards are used, power modules with a power of 240 W or higher must be used.

Chassis material

Metal

Height [mm]

43.6 mm

Depth [mm]

420.0 mm

Wide [mm]

442.0 mm

Chassis height [U]

1

Weight with packaging [kg(lb)]

7.96 (17.55)

Weight without packaging [kg(lb)]

5.52 kg (12.17 lb)

Maximum power consumption [W]

100% traffic under the ATIS standard and dual power modules:

- 127 W (with two 180 W AC power modules)

- 123 W (with two 240 W DC power modules)

Typical power consumption [W]

30% traffic under the ATIS standard and dual power modules:

- 122 W (with two 180 W AC power modules)

- 118 W (with two 240 W DC power modules)

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Maximum heat dissipation [BTU/hour]

100% traffic under the ATIS standard and dual power modules:

- 433.32 (with two 180 W AC power modules)

- 419.67 (with two 240 W DC power modules)

Typical heat dissipation [BTU/hour]

30% traffic under the ATIS standard and dual power modules:

- 416.26 (with two 180 W AC power modules)

- 402.61 (with two 240 W DC power modules)

Power supply mode

Pluggable power supply

Input voltage range [V]

- AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz

- High-voltage DC input: 190 V DC to 290 V DC

- DC input: -38.4 V DC to -72 V DC

Rated input voltage [V]

- AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz

- High-voltage DC input: 240 V DC

- DC input: –48 V DC to –60 V DC

Maximum input current [A]

The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.

Number of power slots

2

Number of card slots

1

Memory

4 GB

Flash memory

Physical space: 2 GB

Redundant power supply

1+1

Pluggable AC and DC power modules can be used together on the same device.

Note:

Power modules with fans and power modules without fans cannot be installed on the same device.

Types of fans

Pluggable

Noise at normal temperature (acoustic power) [dB(A)]

54.2 dBA

Noise at normal temperature (acoustic pressure) [dB(A)]

41.2 dBA

Airflow direction

Air intake from front and right and air exhaust from rear

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Short-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating temperature [°C(°F)]

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:

- The operating temperature exceeds 45°C (113°F) for no more than 96 consecutive hours in a year.

- The total time in which the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.

- The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.

If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.

The device cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.

When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

MTBF [year]

47.17

MTTR [hour]

2

Availability

> 0.99999

Maximum number of physical ports on the entire device

50

Maximum number of 100GE ports

2

Maximum number of 40GE ports

2

Maximum number of 25GE ports

8

Maximum number of 10GE ports

24

Maximum number of GE ports

48

Maximum number of FE ports

40

100G optical interface

2

25G optical interface

8

10GE optical interface

16

1000M electrical interface

24

USB

Supported

Console port

RJ45

Eth Management port

RJ45

Power supply surge protection

- Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode

- Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

RPS input

Not supported

PoE

Not supported
