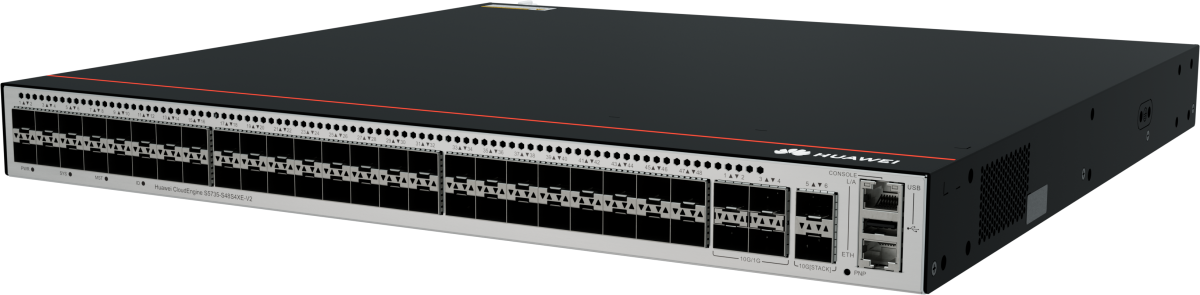

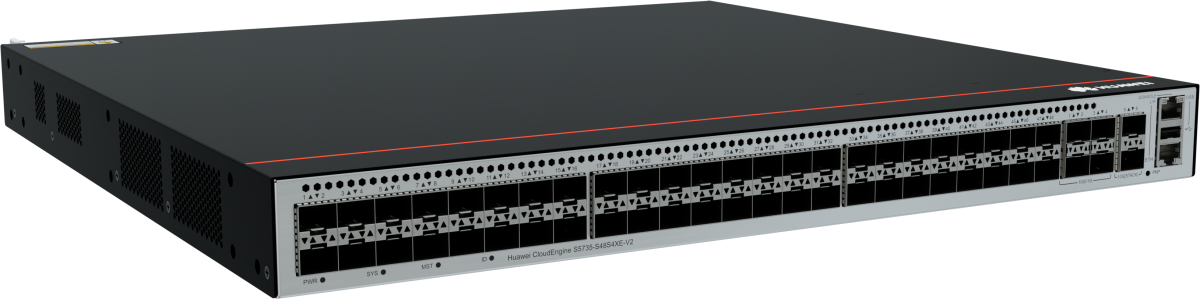

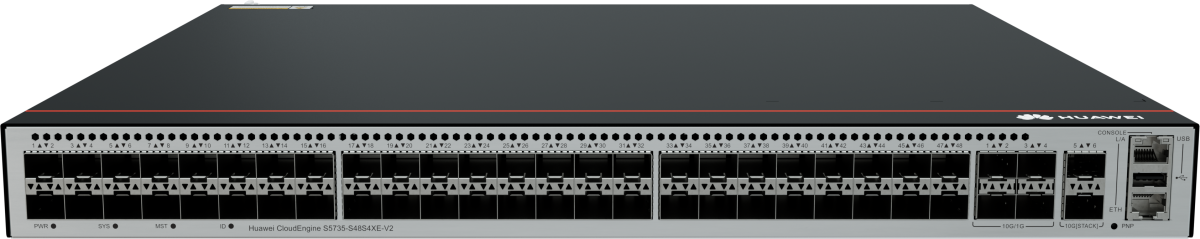

Коммутатор Huawei S5735-S48S4XE-V2 - 48xGE SFP, 4x10GE SFP+, 2x12GE stack ports, without power module

Product Model

CloudEngine S5735-S48S4XE-V2

Forwarding Performance

168 Mpps

Switching Capacity

224 Gbps/520 Gbps

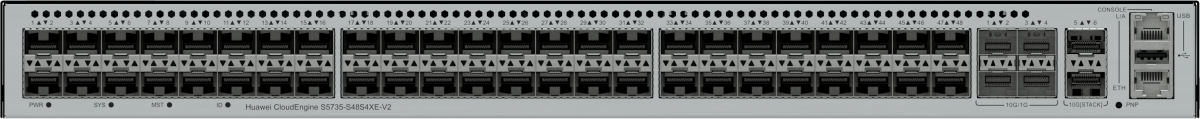

Fixed Ports

• 48 x GE SFP ports,
• 4 x 10GE SFP+ ports,
• 2 x dedicated stack ports

Power Supply Type

1+1 power supply backup

MAC Features

In compliance with IEEE 802.1D
MAC address auto-learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses

VLAN Features

4094 VLANs
Voice VLAN
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

IP Routing

Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, and BGP4+

Basic Information

Part Number

98012232

Model

S5735-S48S4XE-V2

Description

S5735-S48S4XE-V2 (48*GE SFP ports, 4*10GE SFP+ ports, 2*12GE stack ports, without power module)

Technical Specifications

Remarks

- When 25 or more GE optical modules with a transmission distance of 40 km or longer are installed on 1000BASE-X optical ports, power modules with at least 180 W power are required.

- Copper modules can be installed on a maximum of 24 1000BASE-X optical ports.

Chassis material

Metal

Height [mm]

43.6 mm

Depth [mm]

420.0 mm

Wide [mm]

442.0 mm

Chassis height [U]

1

Weight with packaging [kg(lb)]

7.1 kg (15.65 lb)

Weight without packaging [kg(lb)]

5.2 kg (11.46 lb)

Maximum power consumption [W]

- 96.40 W (with two 80 W AC power modules)

- 104.70 W (with two 180 W AC power modules)

- 130.05 W (with two 1200 W DC power modules)

Typical power consumption [W]

72.3

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Maximum heat dissipation [BTU/hour]

- 328.93 (with two 80 W AC power modules)

- 357.25 (with two 180 W AC power modules)

- 443.74 (with two 1200 W DC power modules)

Typical heat dissipation [BTU/hour]

246.69

Power supply mode

Pluggable power supply

Input voltage range [V]

- AC input: 90 V AC to 290 V AC; 45–65 Hz

- High-voltage DC input: 190 V DC to 290 V DC

- DC input: -38.4 V DC to -72 V DC

Rated input voltage [V]

- AC input: 100 V AC to 240 V AC; 50/60 Hz

- High-voltage DC input: 240 V DC

- DC input: –48 V DC to –60 V DC

Maximum input current [A]

The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.

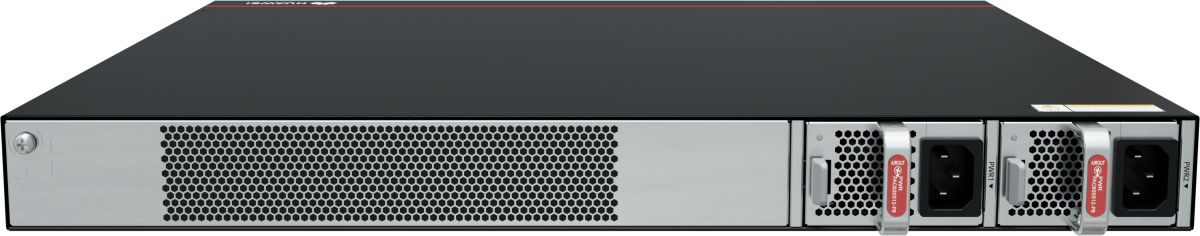

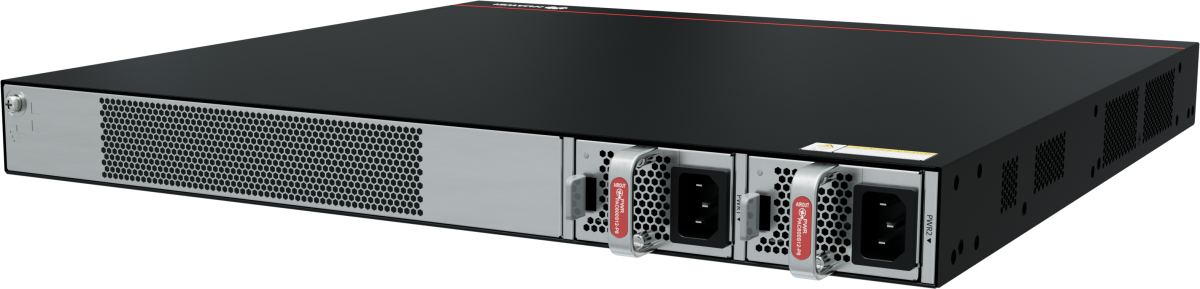

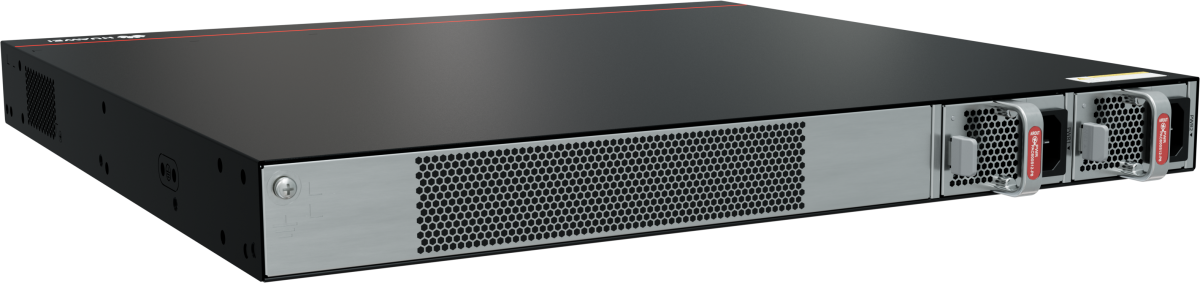

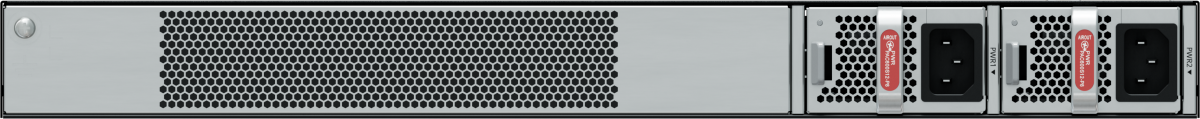

Number of power slots

2

Number of card slots

0

Memory

2 GB

Flash memory

Physical space: 1 GB

Redundant power supply

1+1

Power modules without fans and power modules with fans cannot be installed in the same chassis.

Types of fans

Built-in

Noise at normal temperature (acoustic power) [dB(A)]

43.8

Noise at normal temperature (acoustic pressure) [dB(A)]

31.80

Airflow direction

Air intake from left, front, and right and air exhaust from rear

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Devices cannot start when the temperature is lower than 0°C (32°F).

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

MTBF [year]

78.95

MTTR [hour]

2

Availability

> 0.99999

Maximum number of physical ports on the entire device

54

Maximum number of 100GE ports

0

Maximum number of 40GE ports

0

Maximum number of 25GE ports

0

Maximum number of 10GE ports

4

Maximum number of GE ports

52

Maximum number of FE ports

48

10GE optical interface

4

1000M optical interface

48

USB

Supported

Console port

RJ45

Eth Management port

Supported

Power supply surge protection

- Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode

- Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

RPS input

Not supported

PoE

Not supported
