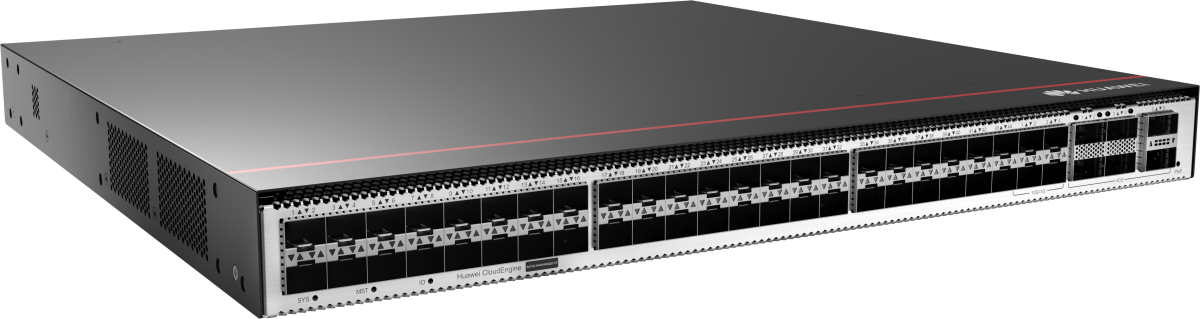

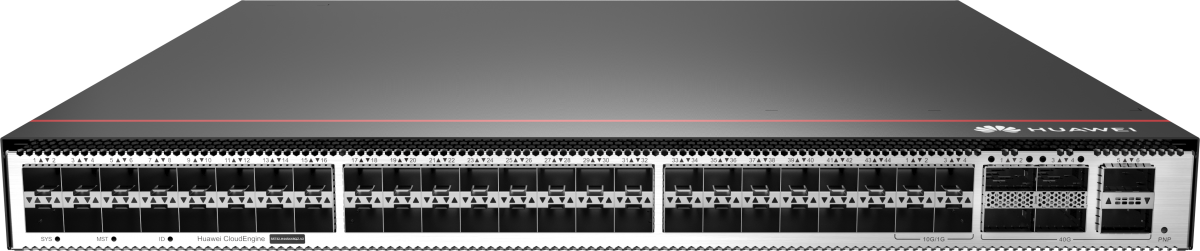

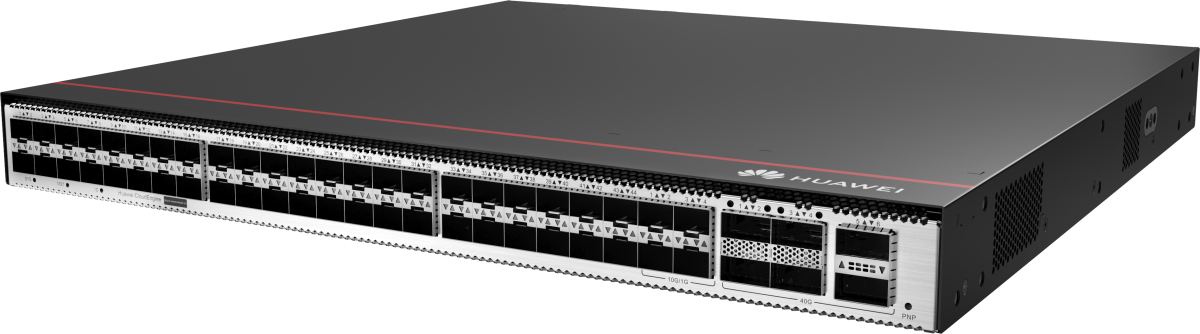

Коммутатор Huawei S5732-H44S4X6QZ-V2 - 44xGE SFP, 4x10GE SFP+, 6x40GE QSFP

Product Model

CloudEngine S5732-H44S4X6QZ-V2

Forwarding Performance

486 Mpps

Switching Capacity²

648 Gbps / 2.4 Tbps

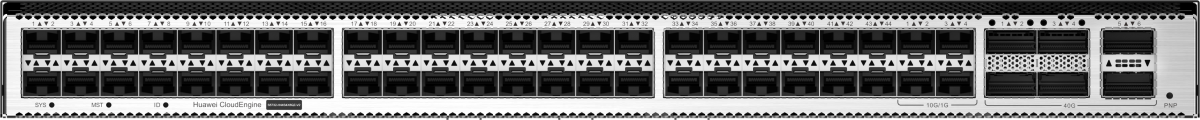

Fixed Ports

• 44 x GE SFP ports,
• 4 x 10GE SFP+ ports,
• 6 x 40GE QSFP+ ports

Extended Slots

One extended slot, support 8 x 25GE SFP28, 8 x 10GE SFP+ or 4 x 25GE SFP28 cards(expected to be supported in R24C00)

MAC Features

IEEE 802.1d compliance
Automatic MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses

iPCA

Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device level

VXLAN

VXLAN L2 and L3 gateways
Centralized and distributed gateways
BGP-EVPN
Configured through the NETCONF protocol

Interoperability

VBST (compatible with PVST, PVST+, and RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)

Part Number

02354VCT

Chassis material

Metal

Height [mm]

43.6 mm

Depth [mm]

420.0 mm

Wide [mm]

442.0 mm

Chassis height [U]

1

Weight with packaging [kg(lb)]

10.46 kg (23.06 lb)

Weight without packaging [kg(lb)]

7.48 kg (16.49 lb)

Maximum power consumption [W]

253

Typical power consumption [W]

200

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Maximum heat dissipation [BTU/hour]

863.26

Typical heat dissipation [BTU/hour]

682.42

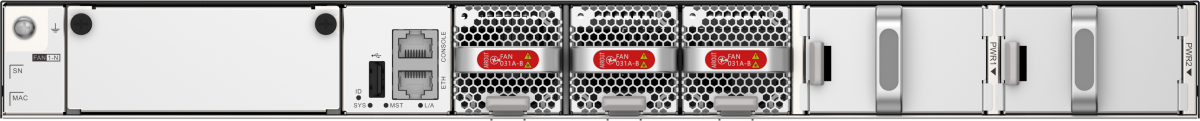

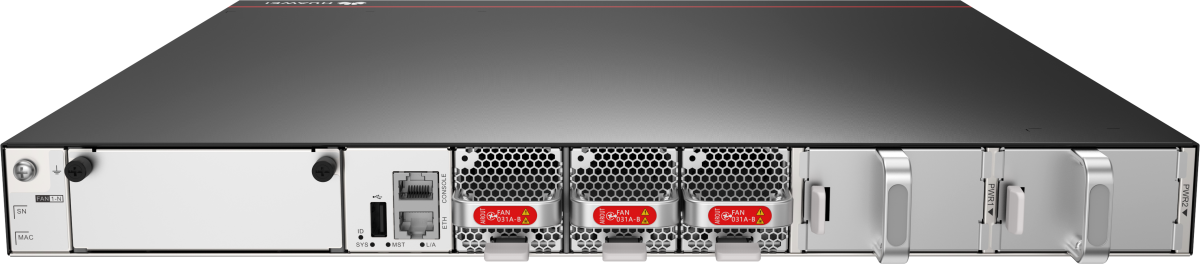

Power supply mode

Pluggable power supply

Input voltage range [V]

- AC input: 90 V AC to 290 V AC; 45–65 Hz

- High-voltage DC input: 190 V DC to 290 V DC

- DC input: -38.4 V DC to -72 V DC

Rated input voltage [V]

- AC input: 100 V AC to 240 V AC; 50/60 Hz

- High-voltage DC input: 240 V DC

- DC input: –48 V DC to –60 V DC

Maximum input current [A]

The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.

Number of power slots

2

Number of card slots

1

Memory

4 GB

Flash memory

Physical space: 2 GB

Redundant power supply

1+1

Pluggable AC and DC power modules can be used together in the same switch.

Types of fans

Pluggable

Noise at normal temperature (acoustic power) [dB(A)]

53.4

Noise at normal temperature (acoustic pressure) [dB(A)]

39.72

Airflow direction

Air intake from front and right and air exhaust from rear

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating temperature [°C(°F)]

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Devices cannot start when the temperature is lower than 0°C (32°F).

When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

MTBF [year]

48.99

MTTR [hour]

2

Availability

> 0.99999

Maximum number of physical ports on the entire device

54

Maximum number of 100GE ports

0

Maximum number of 40GE ports

6

Maximum number of 25GE ports

0

Maximum number of 10GE ports

4

Maximum number of GE ports

48

Maximum number of FE ports

44

40G optical interface

6

10GE optical interface

4

1000M optical interface

44

USB

Supported

Console port

RJ45

Eth Management port

RJ45

Service port surge protection [kV]

-

Power supply surge protection

- Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode

- Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

RPS input

Not supported

PoE

Not supported
