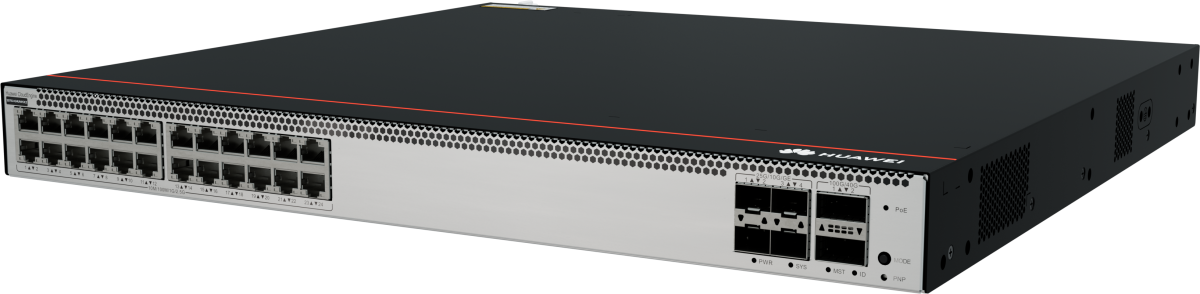

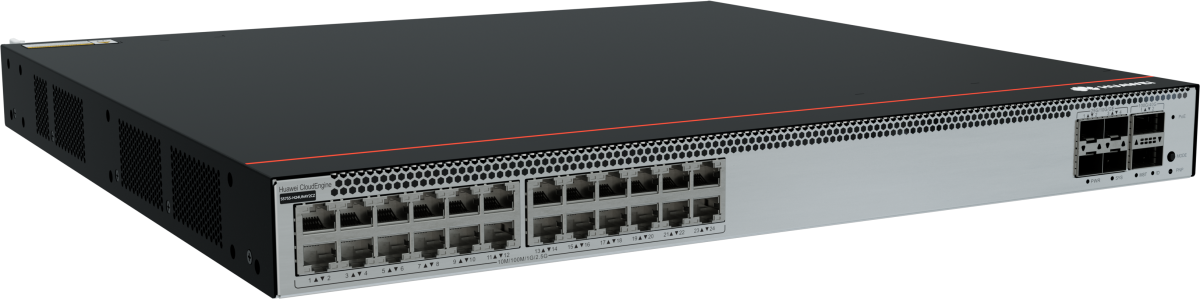

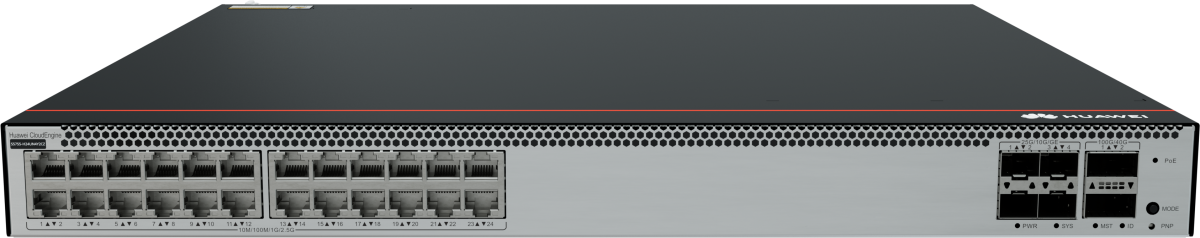

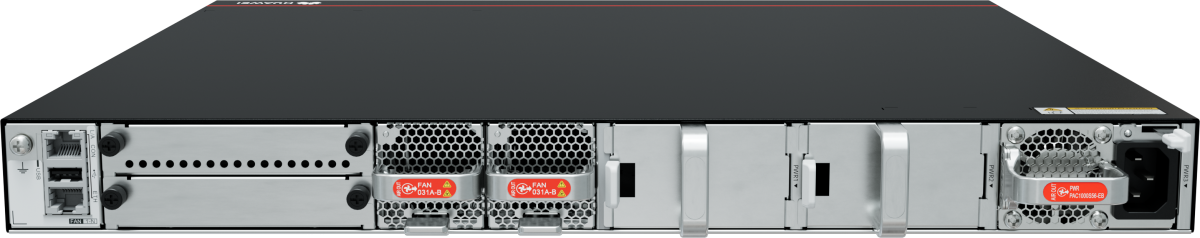

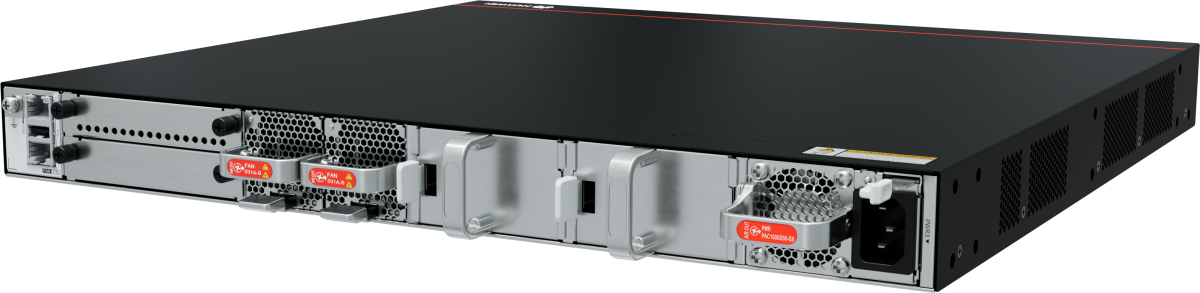

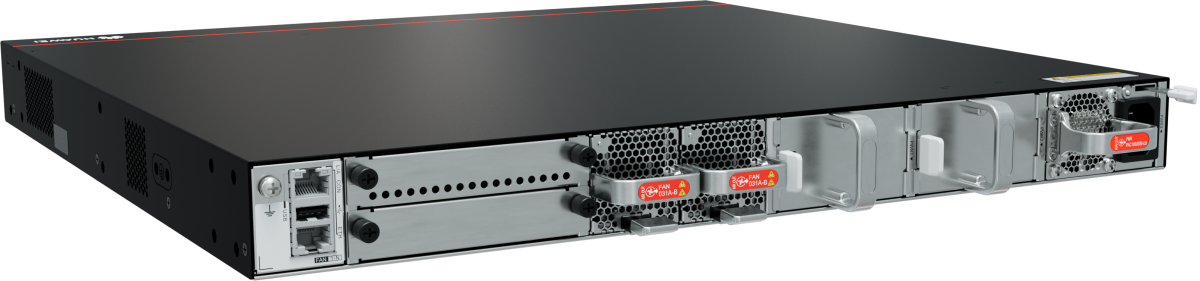

Коммутатор Huawei S5755-H24UN4Y2CZ - 24x10/100/1000/2.5GBASE-T, 4x25GE SFP28, 2x100GE QSFP28, expansion card slot, PoE++

Forwarding Performance

450 Mpps

Switching Capacity

720 Gbps/2.32 Tbps

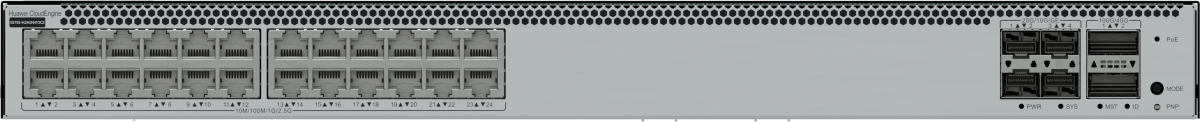

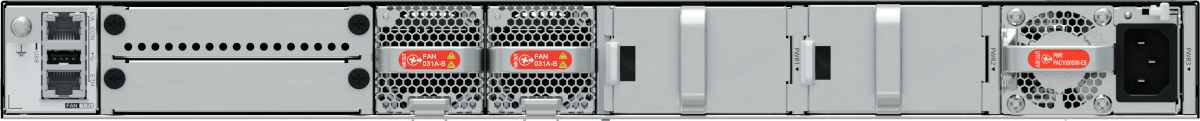

Fixed Ports

• 24 × 100M/1/2.5G Base-T Ethernet ports
• 4 x 1/10/25GE SFP28
• 2 x 40/100GE QSFP28 ports

PoE

Supported, 90 W PoE++

Power Supply Type

3 power supplies, N+1 power supply backup

Expanded Card Slot

Reserved expanded card slot

MAC Features

IEEE 802.1d compliance
Automatic MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses

iPCA

Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratio
Collecting real-time statistics on the number of lost packets and packet loss ratio at network and device levels

VXLAN

VXLAN Layer 2 and Layer 3 gateways
Centralized and distributed gateways
BGP-EVPN
Configured through the NETCONF protocol

Interoperability

VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)

Part Number

02355NEG

Chassis material

Metal

Height [mm]

43.6 mm

Depth [mm]

420.0 mm

Wide [mm]

442.0 mm

Chassis height [U]

1

Weight with packaging [kg(lb)]

9.61 kg (21.19 lb)

Weight without packaging [kg(lb)]

6.53 kg (14.4 lb)

Maximum power consumption [W]

- 100% traffic under the ATIS standard, dual power modules, and without PoE:

 - 120 W (all ports used)

 - 110 W (2 x 100GE ports not used)

- Full PoE load, three 1000 W power modules: 2435 W (PoE: 2268 W)

Typical power consumption [W]

30% traffic under the ATIS standard, dual power supplies:

- 109 W (all ports used)

- 99 W (2 x 100GE ports not used)

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Maximum heat dissipation [BTU/hour]

- 100% traffic under the ATIS standard, dual power modules, and without PoE:

 - 409.45 (all ports used)

 - 375.33 (2 x 100GE ports not used)

- PoE full load, three 1000 W power modules: 8308.46

Typical heat dissipation [BTU/hour]

30% traffic under the ATIS standard, dual power supplies:

- 371.92 (all ports used)

- 337.80 (2 x 100GE ports not used)

Power supply mode

Pluggable power supply

Input voltage range [V]

- AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz

- High-voltage DC input: 190 V DC to 290 V DC

- DC input: -38.4 V DC to -72 V DC

Rated input voltage [V]

- AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz

- High-voltage DC input: 240 V DC

- DC input: –48 V DC to –60 V DC

Maximum input current [A]

The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.

Number of power slots

3

Number of card slots

1

Memory

4 GB

Flash memory

Physical space: 2 GB

Redundant power supply

1+1+1

Pluggable AC and DC power modules can be used together in the same switch.

Types of fans

Pluggable

Noise at normal temperature (acoustic power) [dB(A)]

30% PoE load: 52.90 dBA

Noise at normal temperature (acoustic pressure) [dB(A)]

30% PoE load: 40.9 dBA

Airflow direction

Air intake from left, front, and right and air exhaust from rear

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Short-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating temperature [°C(°F)]

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:

- The operating temperature exceeds 45°C (113°F) for no more than 96 consecutive hours in a year.

- The total time in which the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.

- The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.

If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.

The device cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.

When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

MTBF [year]

71.48

MTTR [hour]

2

Availability

> 0.99999

Maximum number of physical ports on the entire device

30

Maximum number of 100GE ports

2

Maximum number of 40GE ports

2

Maximum number of 25GE ports

4

Maximum number of 10GE ports

4

Maximum number of GE ports

28

Maximum number of FE ports

24

100G optical interface

2

25G optical interface

4

USB

Supported

Console port

RJ45

Eth Management port

RJ45

Power supply surge protection

- Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode

- Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

RPS input

Not supported

PoE

Supported

PoE power supply

Supported
