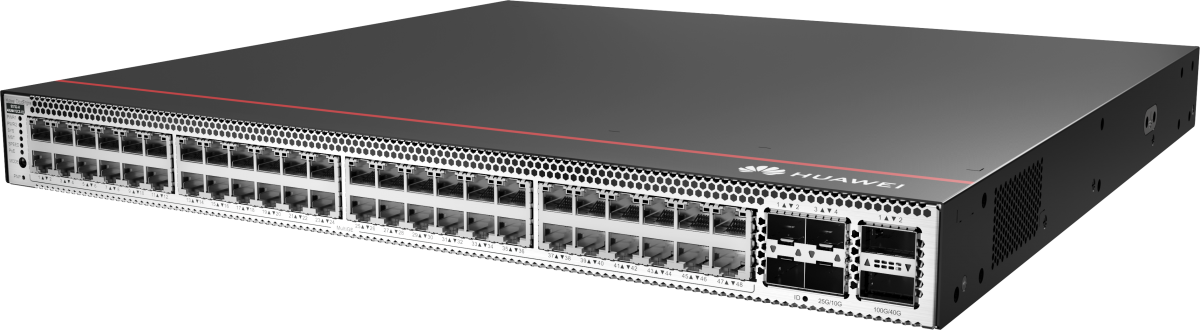

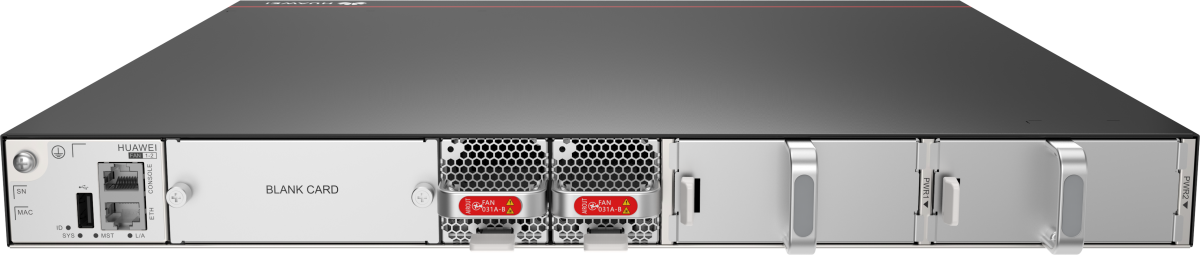

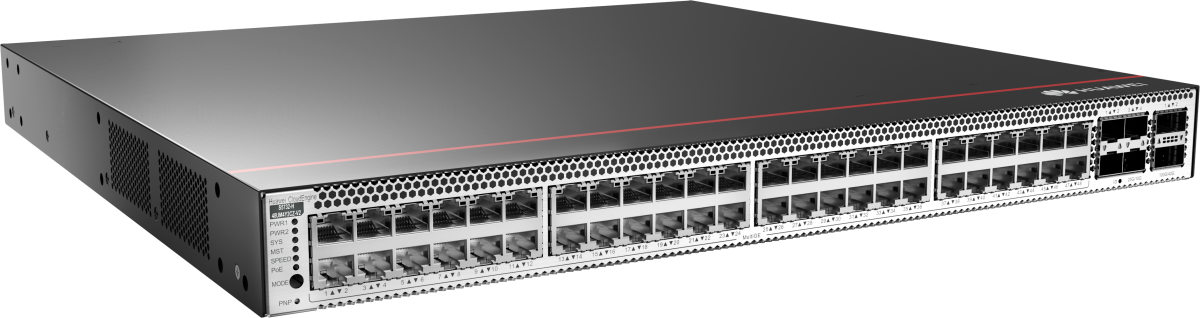

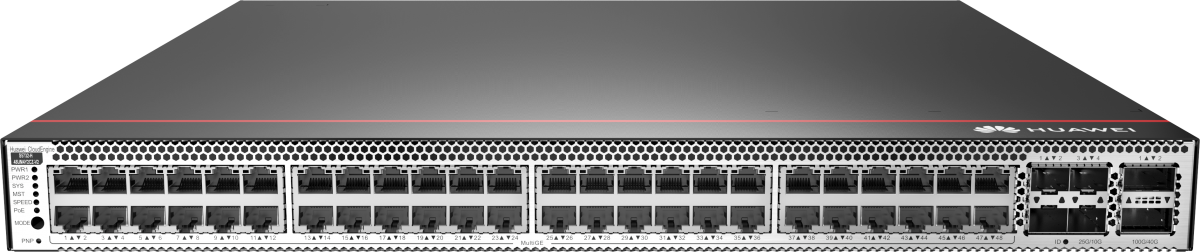

Коммутатор Huawei S5732-H48UM4Y2CZ-V2 - 5G bundle

Forwarding Performance

490 Mpps

Switching Capacity2

1.72 Tbps / 2.4 Tbps

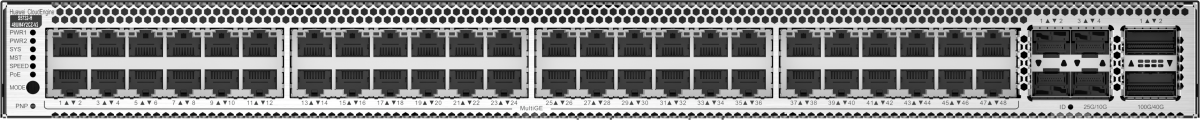

Fixed Ports

• 48 × 100M/1G/2.5G/5G/10G Base-T Ethernet ports,
• 4 x 25GE SFP28 + 2 x 100GE  QSFP28

PoE++

Supported

Extended Slots

One extended slot, support 8 x 10GE SFP+ cards

Flexible Networking

On-demand port rate based on the RTU license and flexible upgrade

iPCA

Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels

VXLAN

VXLAN L2 and L3 gateways
Centralized and distributed gateways
BGP-EVPN
Configured through the NETCONF protocol

Interoperability

VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)

Part Number

02354VBU

Description

S5732-H48UM4Y2CZ-V2 2.5G bundle (48*100M/1/2.5G Ethernet ports, optional RTU upgrade to 5/10G, 4*25G SFP28 ports, 2*100G QSFP28 ports, 1*expansion slot, PoE++, without power module)

Technical Specifications

Remarks

By default, multi-GE ports can work at 100 Mbit/s, 1000 Mbit/s, or 2.5 Gbit/s. You can purchase an RTU license to increase the port rate to 5 Gbit/s or 10 Gbit/s.

To increase the port rate to 5 Gbit/s or 10 Gbit/s, run the license active command to activate the RTU license, and then run the active port-license command.

Chassis material

Metal

Height [mm]

43.6 mm

Depth [mm]

420.0 mm

Wide [mm]

442.0 mm

Chassis height [U]

1

Weight with packaging [kg(lb)]

9.53 kg (21.01 lb)

Weight without packaging [kg(lb)]

7.59 kg (16.73 lb)

Maximum power consumption [W]

- Without PoE: 297 W (without cards)

- Full PoE load: 2013 W (PoE: 1632 W, without cards)

Typical power consumption [W]

210

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Maximum heat dissipation [BTU/hour]

- Without PoE: 1013.39 (without cards)

- Full PoE load: 6868.56 (without cards)

Typical heat dissipation [BTU/hour]

716.54

Power supply mode

Pluggable power supply

Input voltage range [V]

- AC input: 90 V AC to 290 V AC; 45–65 Hz

- High-voltage DC input: 190 V DC to 290 V DC

- DC input: -38.4 V DC to -72 V DC

Rated input voltage [V]

- AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz

- High-voltage DC input: 240 V DC

- DC input: –48 V DC to –60 V DC

Maximum input current [A]

The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.

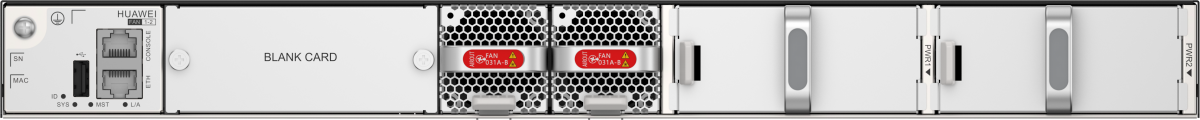

Number of power slots

2

Number of card slots

1

Memory

4 GB

Flash memory

Physical space: 2 GB

Redundant power supply

1+1

Pluggable AC and DC power modules can be used together in the same switch.

Types of fans

Pluggable

Noise at normal temperature (acoustic power) [dB(A)]

Dual 600 W AC PoE power modules with 30% load: 49.2 dBA

Dual 1000 W AC PoE power modules with 30% load: 51.2 dBA

Dual 1000 W DC PoE power modules with 30% load: 51.2 dBA

Noise at normal temperature (acoustic pressure) [dB(A)]

Dual 600 W AC PoE power modules with 30% load: 35.52 dBA

Dual 1000 W AC PoE power modules with 30% load: 37.52 dBA

Dual 1000 W DC PoE power modules with 30% load: 37.52 dBA

Airflow direction

Air intake from left, front, and right and air exhaust from rear

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating temperature [°C(°F)]

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The device cannot start when the temperature is lower than 0°C (32°F).

When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

MTBF [year]

42.49

MTTR [hour]

2

Availability

> 0.99999

Maximum number of physical ports on the entire device

62 (including cards)

Maximum number of 100GE ports

2

Maximum number of 40GE ports

2

Maximum number of 25GE ports

6 (including cards)

Maximum number of 10GE ports

60 (including those on cards; with a license loaded)

Maximum number of GE ports

60 (including cards)

Maximum number of FE ports

48

100G optical interface

2

25G optical interface

4

USB

Supported

Console port

RJ45

Eth Management port

RJ45

Service port surge protection [kV]

Common mode: ±7 kV

Power supply surge protection

- Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode

- Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

RPS input

Not supported
